Primary Multi-Function Sealant

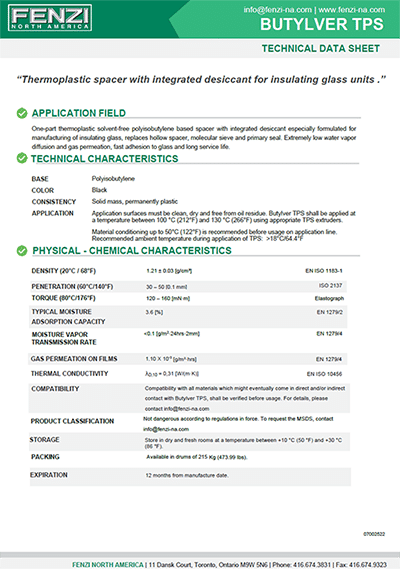

Butylver TPS 2020 is a latest-generation thermoplastic spacer (TPS) designed specifically for use with all the TPS applicators on the market, so as to obtain an insulated glass (IG) unit with top quality warm edge performance and produced with a very high level of industrial automation. A one-part, polyisobutylene base with integrated desiccants, Butylver TPS ensures perfect adhesion, minimal permeability and excellent rigidity and stability, all factors that translate to excellent thermal insulation and durability over time.

Butylver TPS is a primary Thermo Plastic Sealer + desiccant + spacer all in one.

Base:
Polyisobutylene

Color:
Black

Density:
approx. 1.20 gr/cm3

One year in dry and cool rooms at a temperature between +10 °C and + 30 °C

Available in:
215 kilos drums

Primary Sealant

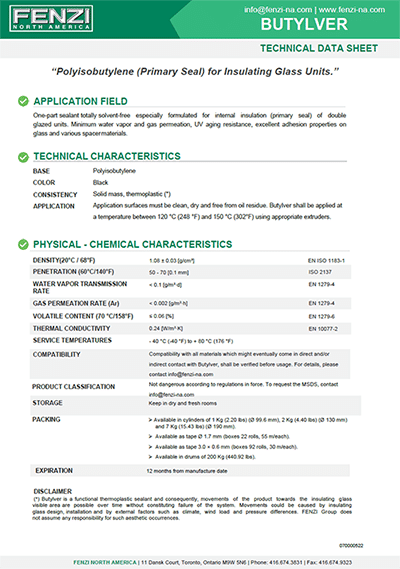

The ideal solution for internal insulation (primary barrier) in IG units. Butylver is a high-quality polyisobutylene, one-component, solvent-free sealant. It features minimal permeability to water vapor and gases, high resistance to ageing, and excellent adhesion to glass, aluminum, steel and stainless steel. It comes in three colors to facilitate structural matching.

  • One part polyisobutylene-based material.

  • Minimum water vapor and gas permeation.

  • Excellent adhesion properties to glass and spacer systems.

  • Solvent-free, specially formulated for use as the primary seal in sealed units.

Color:
Black/Gray

Application:
Various grades available depending on application – please contact Fenzi for further information.

Water Vapor Transmission Rate:
< 0.1 [g/m2 d]

Gas Permeation Rate:
< 0.002 [g/m2 h]

Available in:
Cylinders: 1 kg [2.2 lbs] (Ø 99.6 mm) 2 kg [4.4 lbs] (Ø 130 mm) 2.5 kg [5.5 lbs] (Ø 143 mm) 7 kg [15.4 lbs] (Ø 190 mm)

Tape:
Ø 1.7 mm (boxes 22 rolls, 55 m/each) 3.0 x 0.6 mm (boxes 92 rolls, 30 m/each)

Drums:
200 kg [441 lbs]

Secondary Sealant

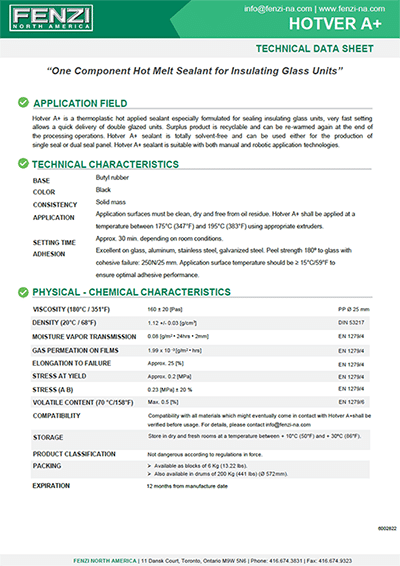

Hotver A+ is the newest, most advanced hot melt sealant in the Fenzi range. It has the same ease of use that is so appreciated with Hotver 2000, but in addition it guarantees superior performance and a greater improvement in the gas leakage rate of IG units. As a result, Hotver A+ is the ideal sealant when producing high energy efficiency windows that comply with the strictest national and European standards for A+ rating.

  • Waste Minimization!

  • Excess product can be rewarmed and utilized in operations.

  • User-Friendly!

  • Applicable for use with manual and robotic applications

  • Sets Fast; allowing for quicker production of double glazed units

  • Environmentally Friendly!
  • Solvent-free

  • Reduced Odour

Color:
Black/Gray

Adhesion:
Excellent on glass, aluminum, stainless steel, galvanized steel and spacer backing foil.

Moisture Vapor Transmission:
0.08 [g/m2 – 24 hrs – 2 mm]

Gas Permeation on Films:
1.99 x 10-3 [g/m2 hrs]

Available in:
Blocks of 2 kg, 4 kg and 6 kg drums of 200 kg (441 lbs)/ 48.03 US gal. (Ø 572 mm)

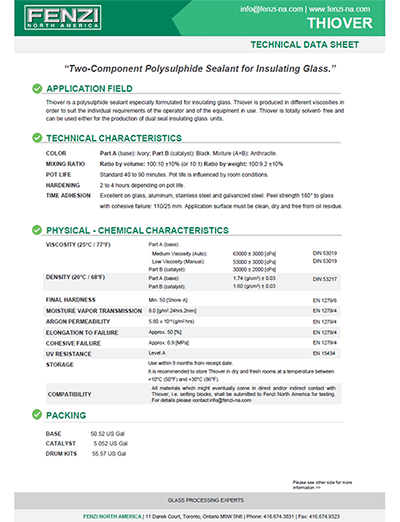

Thiover is a mainstay in the market: the world’s most widely-sold polysulphide sealant, and a best-seller you can always count on. Its worldwide popularity is due to the fact that it can be used at any latitude, because it adapts to all weather conditions when installing windows.

  • Environmentally Friendly!

  • Solvent-free.

  • User-Friendly!

  • Offered in different viscosities to meet customers to meet customer needs and equipment on hand.

Pot Life:
15 to 90 minutes depending on mix ratio

Adhesion:
Excellent on glass, aluminum, stainless steel, galvanized steel and spacer backing foil

Moisture Vapor Transmission:
8.0 [g/m2 – 24 hrs – 2 mm]

Gas Permeation on Films:
5.80 + 0.63 x 10-3 (g/m2 hrs)

Drum Kits:
55.57 US gal

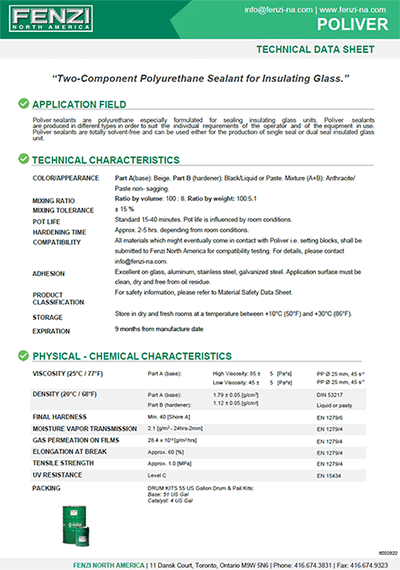

Poliver sealants consistently live up to customers’ expectations: for many years (along with Thiover) they have been the products of choice in an informed and demanding market. They are polyurethanes specifically formulated for the production of IG units, and come in several versions to meet the special needs of manufacturers and their systems. They are entirely solvent-free and can be used for the production of single or double sealed units.

  • Environmentally Friendly!
  • Solvent-free

  • User-Friendly!
  • Adaptable to suit customers’ needs and equipment.

Pot Life:
Standard 15 to 40 min

Adhesion:
Excellent on glass, aluminum, stainless steel, galvanized steel. Application surface must be clean, dry and free from fatty residue.

Moisture Vapor Transmission:
2.1 [g/m2 – 24 hrs – 2 mm]

Gas Permeation on Films:
28.4 x 10-3 [g/m2 hrs]

Drum Kits:
55 US gal Drum & Pail Kits

  • Environmentally Friendly!
  • Solvent-free

  • User-Friendly!
  • Adaptable to suit customers’ needs and equipment.

Color:
Part A (base): White paste
Part B (hardener): Black
Mixture: Black

Pot Life:
15 to 90 minutes depending on grade

Moisture Vapor Transmission:
5.31 [g/m2 – 24 hrs – 2 mm]

Gas Permeation on Films:
0.33 [g/m2 hrs]

Drum Kits:
55.57 US gal
